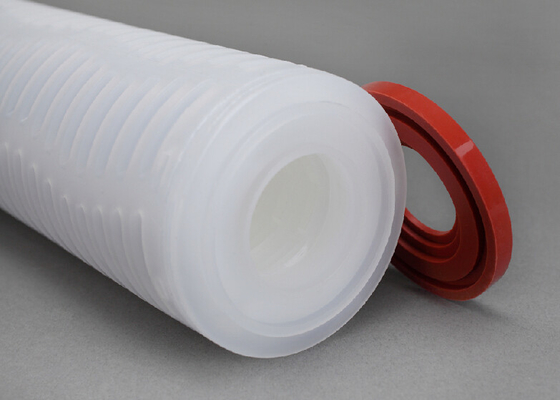

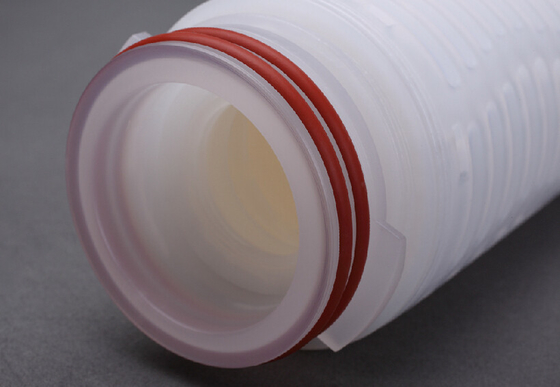

High flow Sterilizing Grade Filters of Hydrophilic PTFE membrane , 40" / 0.2 um

◆ PTFE for liquid filtration

    Imported PTFE membrane which has special porous structure,

    this special structure enables the PTFE membrane filtrate the liquid.

◆ Absolute Rating

 Filtration effective is ≥99.99%

    Minimum pore size is 0.1um, suitable for critical liquid filtration.

◆ Best choice for extreme operating conditions

    Suitable for strong alkaline and acid enviroment,

    what's more it can work under high tempertatue.

    It's best choice for extreme operating conditions.

◆ Effective Filtration Area:   0.65M²  per 10"

◆ Materials

     Filter Media:

PTFE Membrane

     Support Layers:

Polypropylene

     Inner core:

Reinforced Polypropylene

     Outer Support:

Polypropylene

     Adapter:

Polypropylene with encaptulated

                                      SUS304 reinforcing ring

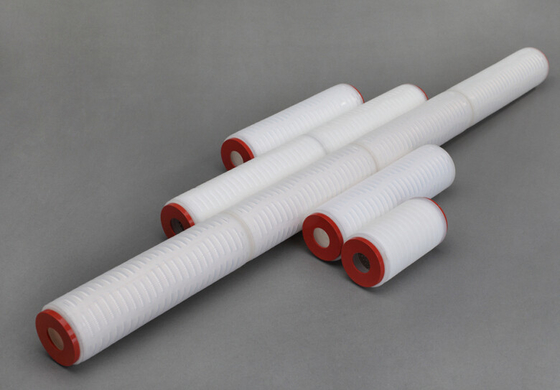

◆ Cartridge Dimensions (Nominal)

     Outer Diameter:

69mm (2.75")

     Inner Diameter:

33mm (1.30")

     Length:

10"- 254mm

20"- 508mm

30"-762 mm

40"- 1016mm

    * (Length is based on DOE Adapter)

◆  Cartridge Purity

     Free of surfactants, resins, binders and adhesives.

     Standard: Clean and flushed with Pyrogen-free water.

     Rinse: up to 17-18MΩ.cm with a minimum of throughput

     Vacuum packing

    Table 1:  Typical water flow rate (10")

          ◆ Typical Applications

              Bacterial removing;

              Strong acid or alkaline solvent;

              High temperature liquid filtration.

 Table 2:  Liquid Retention Ratings(um) Test

Cartridge Code

≥99.99% (Beta Ratio 10,000)

IHPF010

0.1

IHPF020

0.2

IHPF045

0.45

◆ Operating Conditions

      Normal Operating Temperature:  Up to 65℃ (149℉)

      Max.Operating Temperature.: 90℃ (194℉)at△P≤1.0 bar (14psi)

      Max. Differential Pressure:

      Normal Flow direction  4.2 bar (60 psi) at 25℃ (77℉);

      Reverse flow direction 2.1 bar (30psi) at  25℃ (77℉).

      PH Value compatibility: 1-14

◆ Sterilization

    Steam Sterilization for 30 minutes at 135℃(275℉)

    Cumulative Time: 50hours

◆ Materials Safety

    Meet the current FDA and 2002/72/EC standard.

    Endotoxin: ＜0.25 EU/ml

    Extractables: 0.03g/ 10"

 Table 3:  100% Integrity Test

Cartridge Code

Bubble Point

IHPF010

≥1.3bar (19psi)

IHPF020

≥0.9bar (13psi)

IHPF045

≥0.4bar (5.8psi)

* Test Liquid:  70%/30% IPA/WATER at 23℃ (73℉)

Table 4:   ORDER INFORMATION

GRADE

PRODUCT

MICRON

ADAPTER

LENGTH

                    O-RING / GASKET

P-PHARMACEUTICAL

IHPF

010-0.1um

AA- DOE

10-10"

 S-silicone;      N-nitrile

F- FOOD & BEVERAGE

020-0.2um

CN-226/FIN

20-20"

 E-epdm ;        T-teflon (encaptulated)

E- Electrical

045-0.45um

BN-222/FIN

30-30"

 V-viton

BF-222/ FLAT SEAL

40-40"

How to Order?- Example

CF-226/FLAT SEAL

05-5"

Pharmaceutical grade; Micron:0.45um; Length:10"  ADAPTER: DOE; Gakset: Silicone.                               Selection Code is: PIHPF045AA10S

EN-222 three locking  ears /Fin

Other-XX
